Nutek Flooring Display Rack - Assembly Instructions |
|

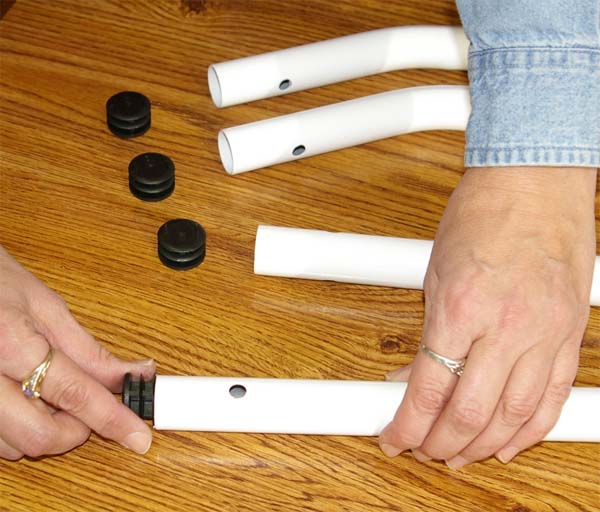

Start by inserting the four rubber pegs into the bottom of the four lower
stand side supports. |
|
Attach the top side support, (with curved tube), to the two lower leg supports.

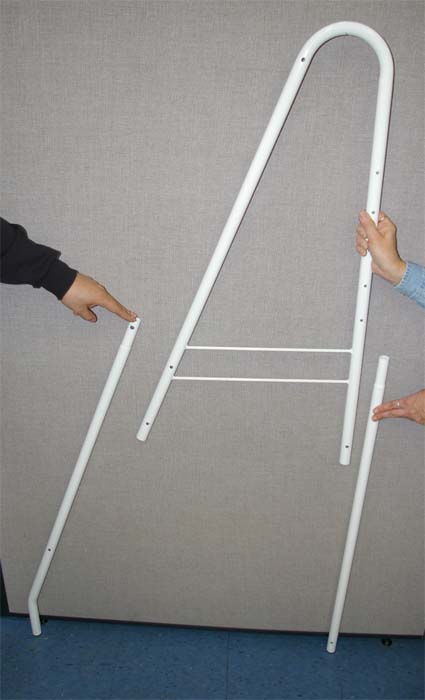

Image shows how the front and back bottom legs attach to the upper portion of the stand. |
|

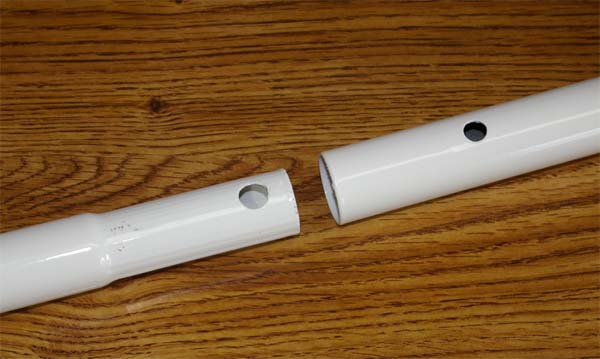

Slide the upper stand leg over the bottom leg. |
|

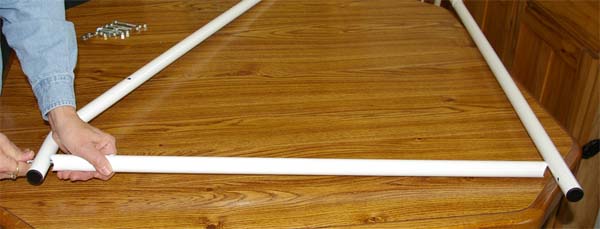

Locate the "Front to Back" tube support - this will attach the
lower portions of the front and back support legs. |
|

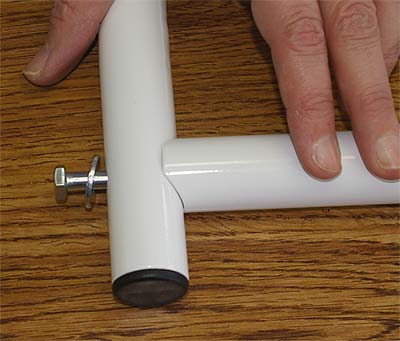

While using a washer - it helps to hold the pieces together firmly then screw in the bolt. |
|

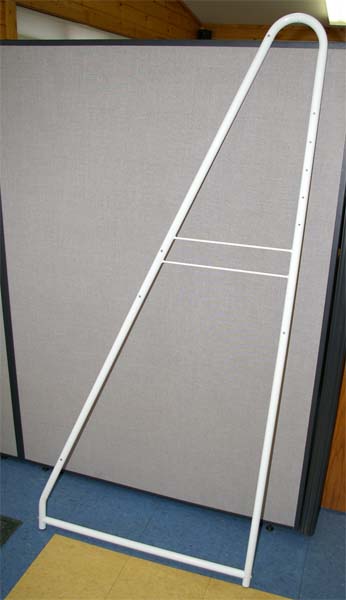

Completed side assembly. |
|

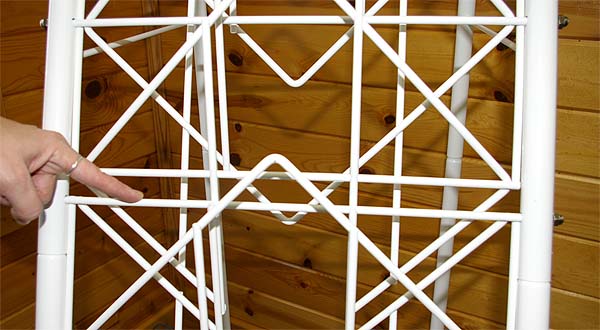

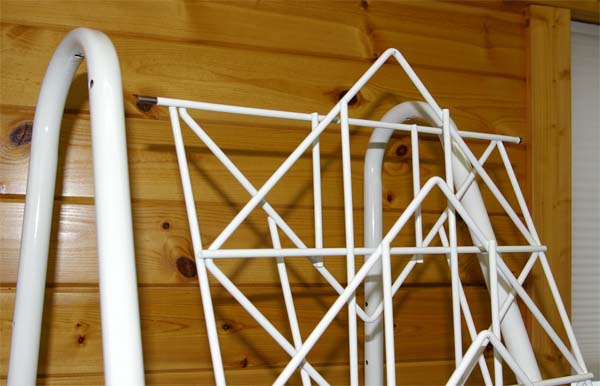

Identify the front and top of the center rack portion of the stand - the image shows top and front.
The back of the rack stands vertical while the front side of the rack has the sides that angle back. |
|

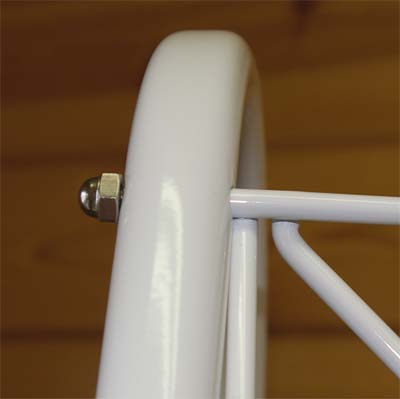

Attach the top portion of the center rack assembly to the front side
support on one side, then attach the bottom of the center rack to the second hole down on the same side. |
|

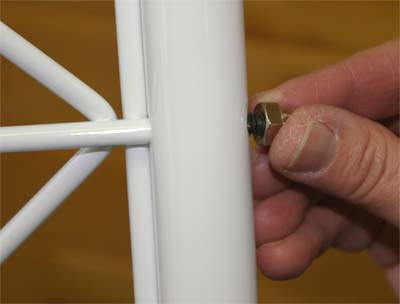

Attach nut to secure center rack - work your way down on one side. |
|
Please Note: The third connection hole down from the top will hold the
top of the lower center rack, (or second center rack), and secure the top and bottom side legs of the side supports together. |
|

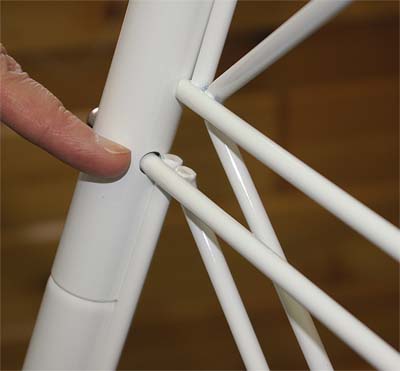

This image shows the finger pointing to the top of the second center rack you will attach into the front side of the
third hole down on the side supports.
|
|
Now attach both center racks to the other side support. |
|
In the rear of the stand, attach the short support tube from one side to the next, side to side. This is
located near the center vertically and
this bolt will secure the
top and bottom side support legs together. |
|

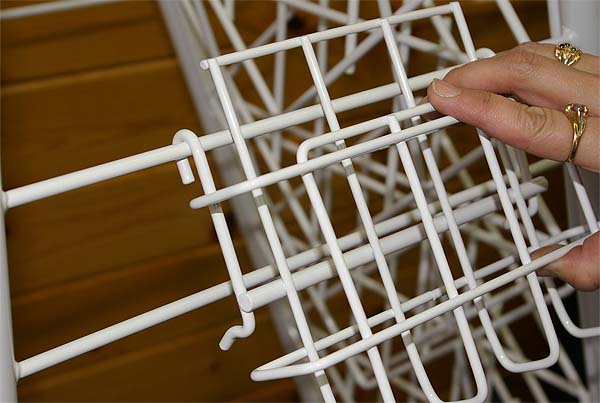

Attach and snap into place the brochure holder on either side of the stand, as you see fit. |
|

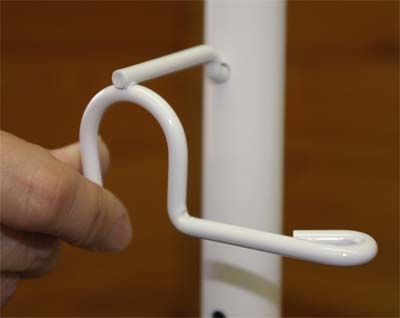

Insert the three sample chain holders into the holes
in rear side support legs, on your desired side. |
|

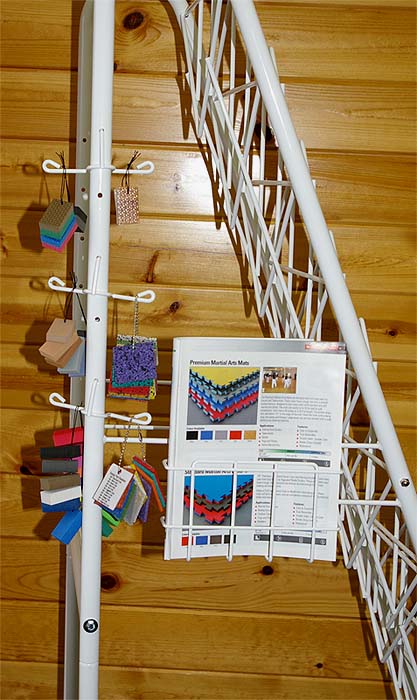

Installed sample chains and brochures. |
|

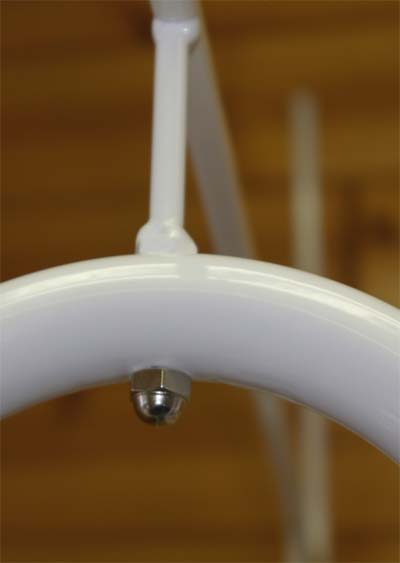

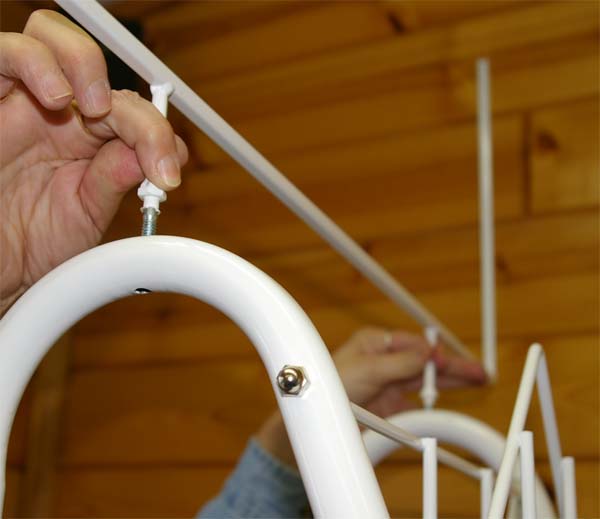

Install the sign holder to the top of the stand by inserting the sign holder bolts into the holes on top of the stand and secure with nuts. |
|

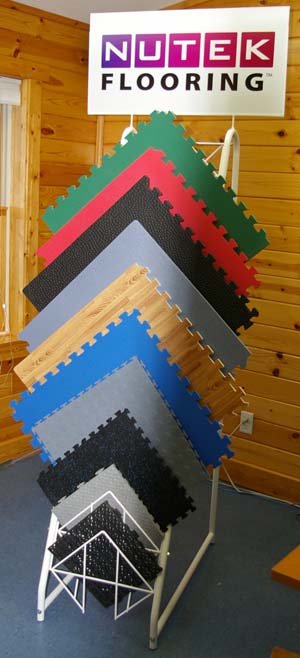

Finally, slide your NUTEK Flooring sign into the sign holder, insert your products into the stand and you will have a
completed Nutek Flooring in-store product display.
For questions please contact your sales person.
|
